Description

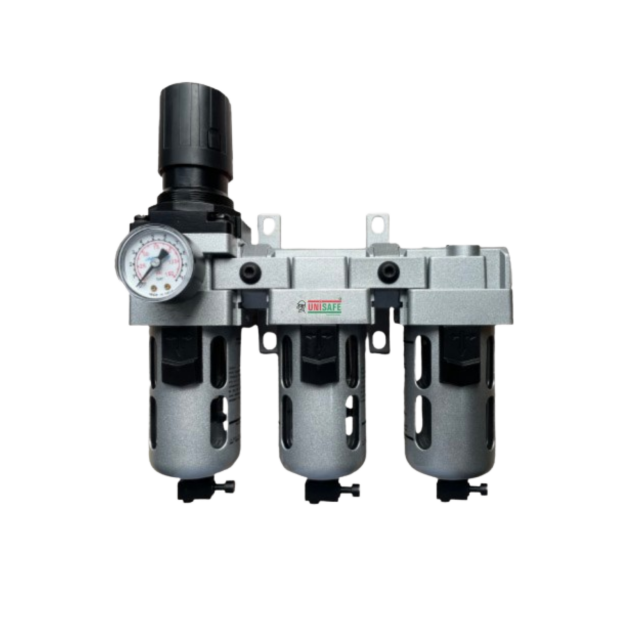

The Unisafe Breathing Airline Filter is designed to provide multi-stage filtration of compressed air for applications requiring effective removal of contaminants such as oil, moisture, dust and odour. Its compact design allows convenient installation while remaining compatible with standard airline systems.
The filtration system uses a three-stage filtration process consisting of a pre-filter, dust filter and odour filter. The system incorporates oil filtration and desiccant moisture filtration, a HEPA-grade dust filter and an activated carbon odour filter to provide comprehensive filtration of compressed air.
The filter removes liquid and solid particulate matter down to 0.03 micron, followed by oil vapour and odour filtration down to 0.003 ppm. Each unit is fitted with a pressure regulator and pressure gauge for pressure control and monitoring. A manual drain is also provided to remove accumulated dust and mist particles.
The Breathing Airline Filter has a specified flow rate of 700 LPM, pressure rating of 10 Bar and 3 outlets. The product is available in portable filter and wall-mounted filter configurations, providing flexibility for different installation requirements.
The filter is designed for use across industries including manufacturing, painting and chemical processing, where compressed-air filtration is required. The supplied documentation specifies a 1-year warranty and recommends replacing filter cartridges every six months or as indicated by pressure drop.
Key Features
- Three-stage compressed-air filtration
- Pre-filter, dust filter and odour filter
- Oil filtration and desiccant moisture filtration
- HEPA-grade dust filter
- Activated carbon odour filter
- Removes oil, moisture, dust and odour
- Liquid and solid particulate filtration down to 0.03 micron
- Oil vapour and odour filtration down to 0.003 ppm
- Built-in pressure regulator
- Built-in pressure gauge
- Manual drain for dust and mist particles
- 700 LPM flow rate
- 10 Bar pressure rating
- 3 outlets
- Compact and space-efficient design
- Compatible with standard airline systems

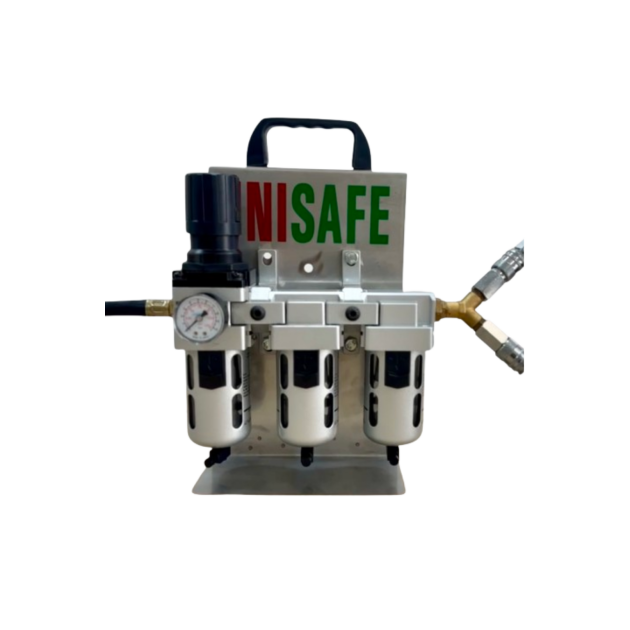

- Available in portable and wall-mounted configurations
- High-efficiency and long-lasting filter media
Applications
- Manufacturing industries
- Painting applications
- Chemical processing industries
- Compressed-air filtration applications
- Industrial airline systems
- Applications requiring removal of oil, moisture, dust and odour from compressed air
Certifications & Standards
- ISI 10245 Part 3
- EN 12021
Testing: Tested as per ISI 10245 Part 3 / EN 12021.
