CONFORMING TO IS:10592-1982 revised as per 2018

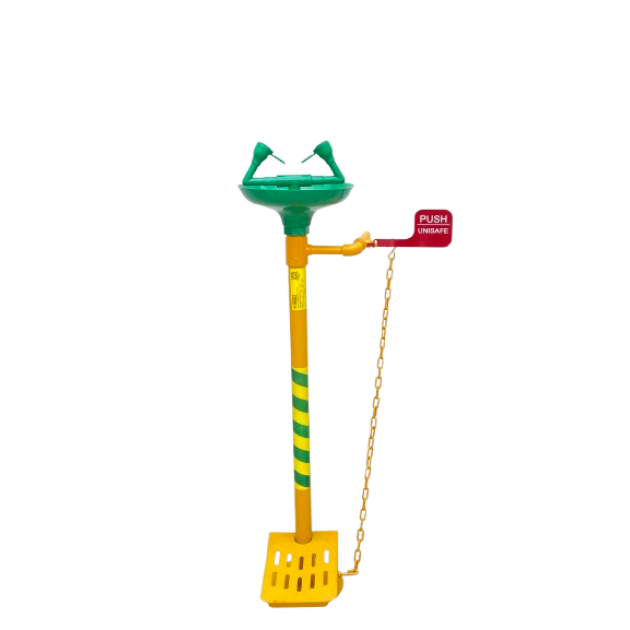

FOOT PEDAL unit include push plate which is laser cut and foot operated for the ABS atomizer eye/face wash head, zero upward velocity stream engineering with even aerated flow. ABS Atomizer is equipped with flip-off cover to prevent dust contamination. 1⁄2” inch brass ball valve, Impact corrosion resistant, with ABS receptor bowl. Inlet supply connection is 1⁄2” and drain connection is 1 1⁄4”. Hot dipped Galvanized stanchion as per IS 1239 with epoxy color (green/red/yellow). Flange to support eye/face wash unit having 4 holes of 10mm.
RECOMMENDED DESIGNED PRESSURE: 30 PSI / 2Kg / 12ltr. Per minute

Additional information

Make

Unisafe
